Guide rail 2-leaf

TS 5000 L-R-ISM ECline * Overhead door closer system with guide rail for barrier-free, easy-to-open double leaf doors with closing sequence control and smoke switch control unit

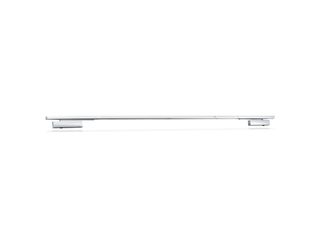

Door closer system TS 5000 R-ISM/0 SoftClose / ECline with HM Overhead door closer with guide rail system for double leaf doors with closing sequence control, smoke switch and integrated back check, which brakes heavily applied doors.
  • System with two door closers TS 5000 ECline and an R-ISM guide rail assembly
  • Closing force of EN3-5 with variable adjustment
  • Operating voltage 230 V AC
  • Electric hold-open device in the guide rail with hold-open area from 80°
  • Electric hold-open device in the guide rail with hold-open area of 80°-130°
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Show more
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left double leaf single-action doors
  • Single-action doors up to 2500 mm hinge clearance and 1250 mm leaf width
  • Symmetrical and asymmetrical division of door possible
  • Door leaf installation opposite hinge side
  • Hold-open systems with integrated hold-open device

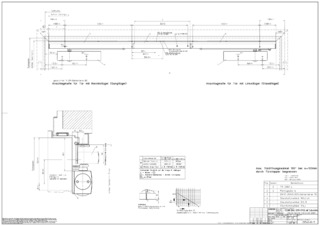

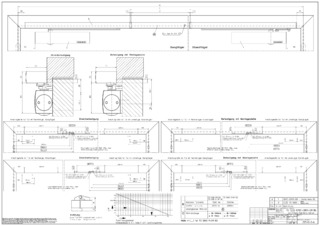

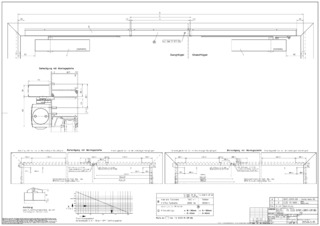

Technical data

TS 5000 L-R-ISM ECline
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation opposite hinge side
Opening angle (max.) 130 °
Input voltage 230 V AC
Frequency of supply voltage 50 Hz
Minimum hinge clearance 1560 mm
Minimum passive leaf width 380 mm
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Yes / Yes
Hold-open range 80 °
Smoke switch integrated Yes
Closing sequence control integrated Yes
